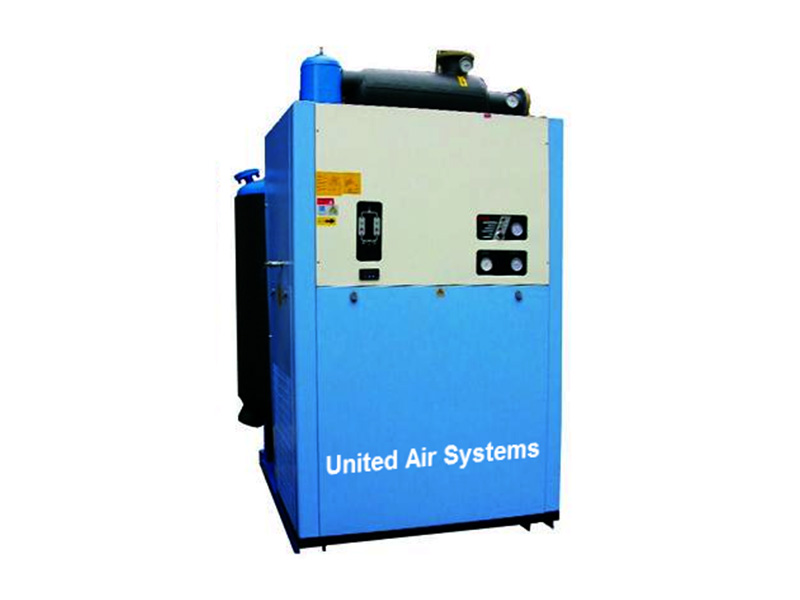

UAS Nitrogen Purify System

Purity guaranteed up to 99.9995%
Maximum flow rate can be above 400m³/hr

Referral industry: semiconductor, photovoltaic, solar and laser cutting.

Categories: UAS N2, Product, N2 Generator, Peripherals & OthersTags: linkage control, low purity exhausting systems equip-table, low-consume system, N2, One-Button Start

Overload system
Solution to instantaneous large flow
Linkage Controller
One screen, one focus
Low-Consuming System
Reduce consumption by 90% of raw materials*

Benefits

Flexible flow – equipped with the latest overload systems, suitable for instantaneous large-flow customers.

Linkage control – while with UAS nitrogen generator, operate the whole system on only one screen

Low consumption system – only 1% of nitrogen consumed during the purification process.

Low power consumption – saving up to 90% power than the traditional one.

Optional hydrogen generator – only needs to add mineral water as raw materials. Convenient, and easy to use.

Impure exhausting system equipped, only giving the expecting nitrogen quality.

Specifications

United Air Systems Nitrogen Purify System

specifications

Flow rate	≦ 400 Nm³/ hr	Controller type PLC Controller
Purity range	99.9995 % (O₂content 5 ppm)
Highest N₂ inlet temp.	50 ℃
Lowest N₂ inlet temp.	5 ℃	Power supply requirement	220 AC / 1 ph / 50 or 60 Hz OR 380 AC / 3 ph / 50 or 60 Hz
Min. operating pressure	5.5 barg	Power supply requirement	220 AC / 1 ph / 50 or 60 Hz OR 380 AC / 3 ph / 50 or 60 Hz
Min .N₂ outlet pressure	5 barg	Noise level	≦ 70 dBA
Recommend operating temp.	≦ 40 ℃	N₂dew point Out	– 70 ℃ dew point

Model	Flow (Nm³/hr)	Dimensions (mm)
Model	Flow (Nm³/hr)	L	W	H
PHN-20	20 m³	600	650	1160
PH-N30	30 m³	600	650	1160
PHN-50	50 m³	600	650	1160
PHN-80	80 m³	950	700	1215
PHN-100	100 m³	1040	850	1430
PHN-160	160 m³	1450	1100	1490
PHN-200	200 m³	1300	1150	2080
